Diamond Audio MSMS694LK24 (2024+ Harley Davidson® Cut-In Lid Kit with MS69CX Speakers (4Ω)) + MICRO2V2 (MICROV2 Series 2-Channel Full Range Class D Amplifier)

Features:

MSMS694LK24 Features:

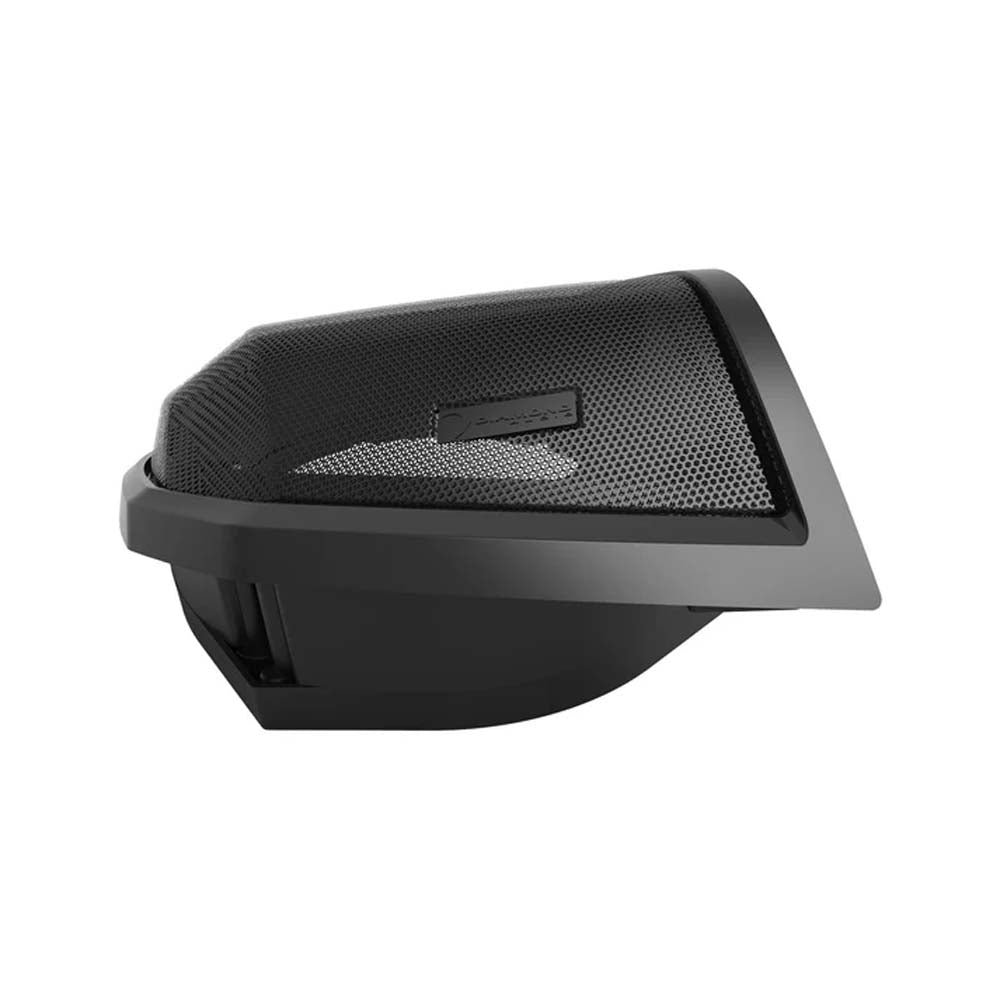

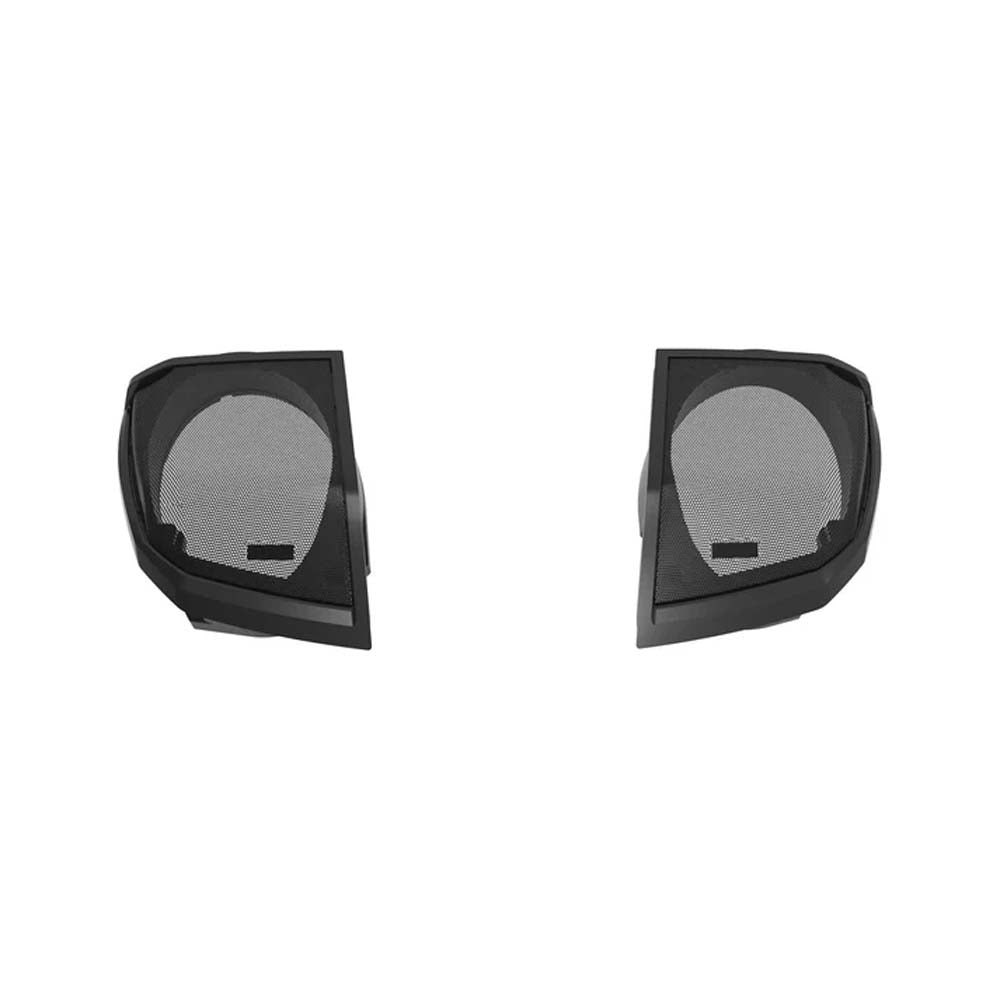

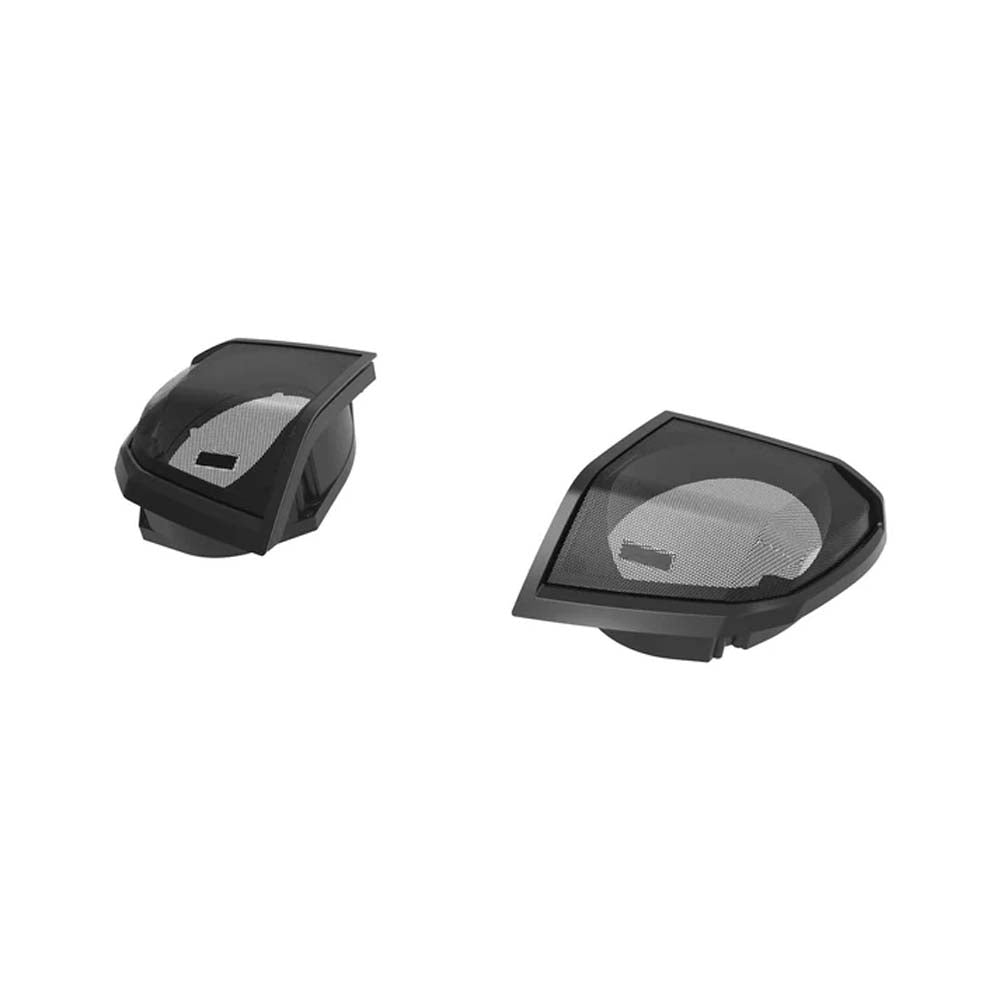

• Seamless Integration: Engineered to fit 2024+ Harley Davidson® models, this kit ensures a factory-finish appearance and a perfect fit for easy installation.
• High-Performance Audio: Featuring MSMS694 6x9” Coaxial Subwoofers, these speakers provide rich bass, detailed mids, and crisp highs, ensuring every note is felt and heard.
• Superior Heat Dissipation: Designed with a high-temp voice coil and an advanced cooling system, this kit allows for extended high-volume play without distortion.
• Built to Last: Constructed with a heavy-duty stamped steel basket and a Ferrite Strontium Magnet Structure, these speakers offer long-lasting durability even in the toughest riding conditions.
• Plug & Play Installation: The included wiring harness and precision-fit spacer rings make installation quick, easy, and hassle-free.
• Upgrade your Harley Davidson® with powerful, high-performance sound and deep bass that commands attention. Order your MSMS694LK24 Cut-in Lid Kit today!

MICRO2V2 Features:

• MicroV2 Series Class D 2 ohm Stable 2-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 2 channel
• 2 ohm: 250 watts x 2 channel
• Bridged: 500 watts x 1 channel @ 4 ohm
• Total RMS power output: 500 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
• Advanced rollback and thermal protection
• Full range Class D IR chipset
• DirectFET power MOSFET output stage
• SMD technology on 4-layer glass PC board
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Ultra-compact and versatile
• Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 10 - 33 KHz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 25A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.89" L x 4.0" W x 1.46" H

Specifications:

MSMS694LK24 Specifications:

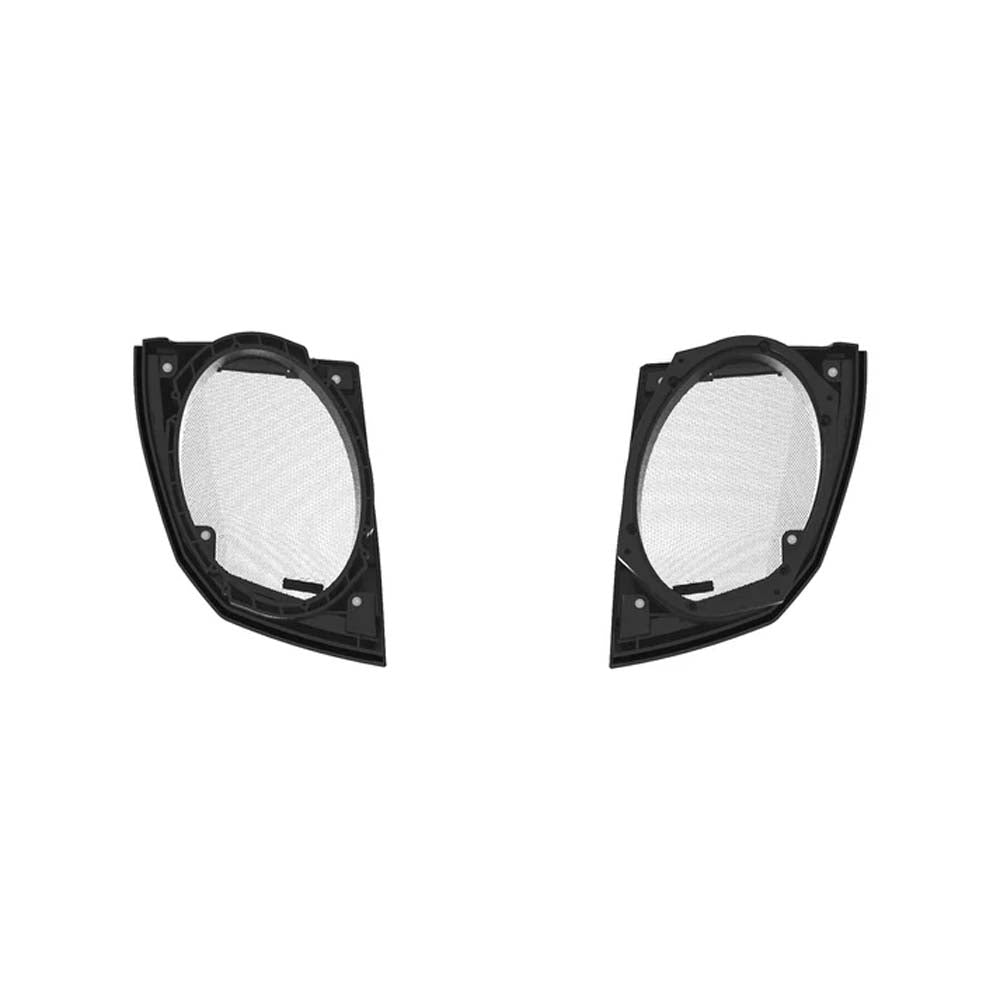

• Includes .5” 6” x 9” Spacer Ring

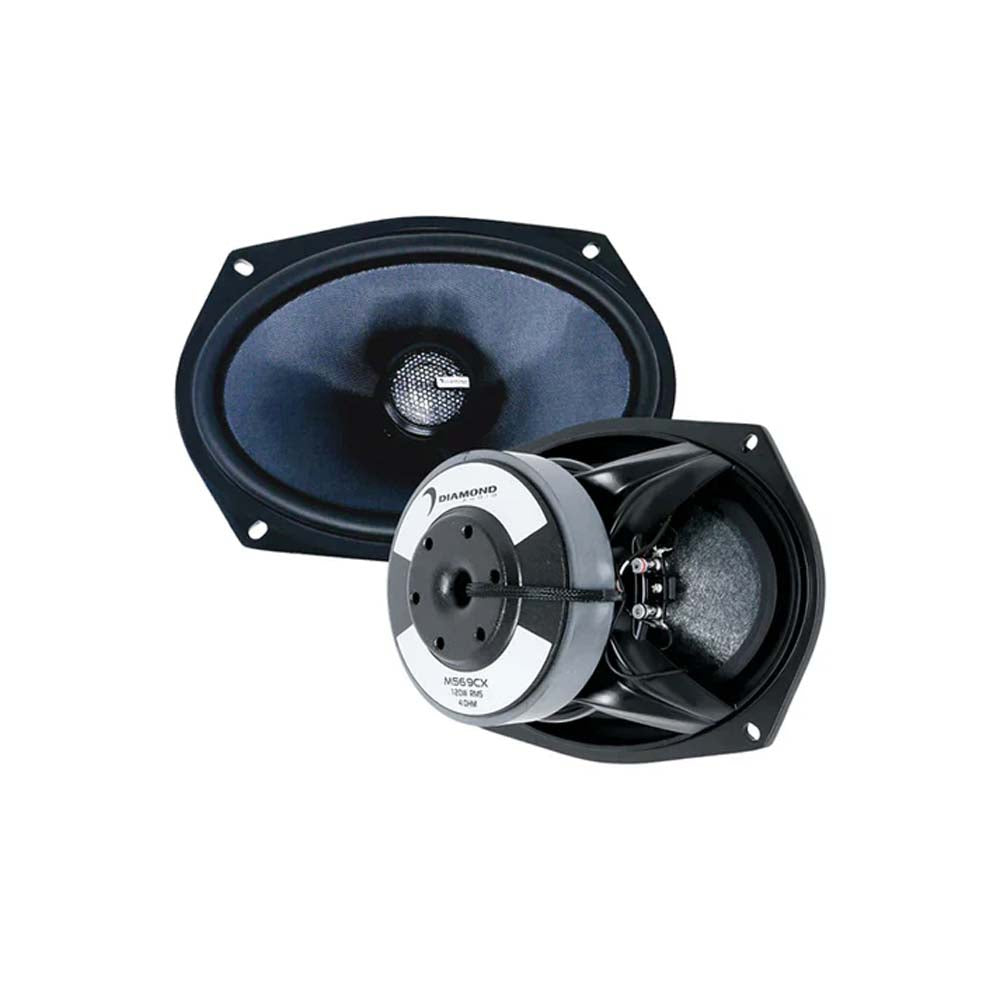

• Includes: MS69CX - 6"x9" 2-Way High Power Motorsport Coax-Sub
• Manufactured to IPx65 Marine Grade Compliant Specifications
• 1" High Output Titanium Dome Tweeter
• UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
• 12dB Bessel Crossover Network
• Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
• T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
• High-Temperature Cast Aluminum Basket
• Mounting Diameter 8.875″ (225.5mm) x 6.125″ (155.6mm)
• Mounting Depth 3.875″ (98.425mm)

MICRO2V2 Specifications:

• 2 Channel Full Range Digital Amplifier
• 250W x 2CH @ 2Ω
• 150W x 2CH @ 4Ω
• 500W x 1CH @4Ω Bridged RMS Power Output
• Input Sensitivity: 0.2-10 Volt
• Crossover Filter : 40-400Hz, 12dB Per Octave Slope
• Frequency Response: 10-33KHz
• Selectable REM / VOX / DC Turn On Modes
• Selectable X-Over: LPF / FLAT / HPF
• Dimensions: 7.89” x 4.1” x 1.46” / 200.5 x 103 x 37.2 mm
• Remote Bass Knob Included
• Disconnected RCA Input & Speaker Output Harness Kits Included
