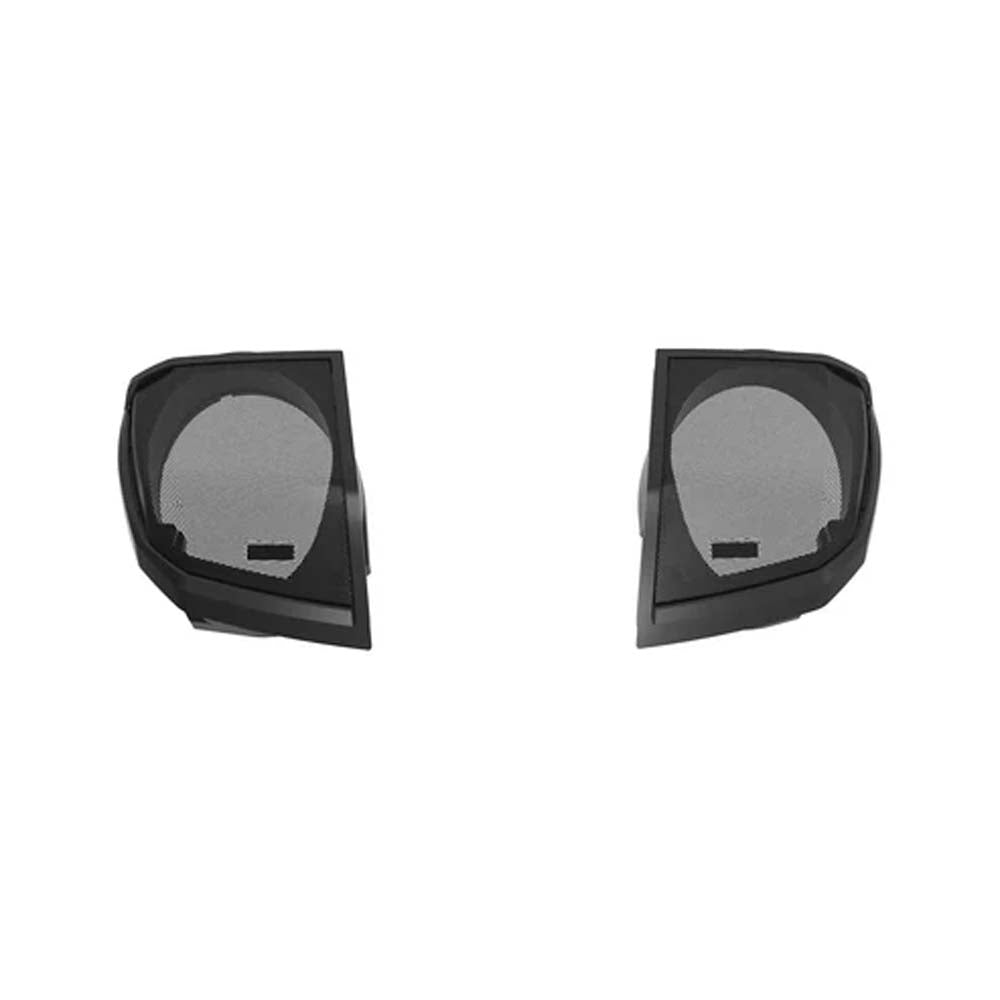

Diamond Audio MSHXM692LK24 (2024+ Harley Davidson® Cut-In Lid Kit with HXM69F2 Speakers (2Ω)) + MICRO2V2 (MICROV2 Series 2-Channel Full Range Class D Amplifier)

Features:

MSHXM692LK24 Features:

• Optimized for Power: Designed with a low-impedance 2Ω setup, these speakers maximize amplifier efficiency, delivering higher volume output and deeper bass response.
• Customizable LED Aesthetics: Integrated RGB lighting allows you to personalize your bike’s appearance, adding a dynamic visual touch to your audio powerhouse.
• High-Performance Sound: Equipped with a heavy-duty magnet structure and precision-tuned voice coils, these speakers ensure rich midrange, clear highs, and solid low-end response.
• Built for the Road: Featuring a rugged, water-resistant design, this kit withstands rain, dust, and road debris, keeping your audio system performing flawlessly.
• Quick & Easy Installation: Includes a Plug & Play wiring harness and pre-cut mounting templates for a hassle-free installation process.
• Upgrade your Harley Davidson with a powerful, road-ready sound system and custom RGB lighting effects. Get your MSHXM692LK24 Cut-in Lid Kit today!

MICRO2V2 Features:

• MicroV2 Series Class D 2 ohm Stable 2-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 2 channel
• 2 ohm: 250 watts x 2 channel
• Bridged: 500 watts x 1 channel @ 4 ohm
• Total RMS power output: 500 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
• Advanced rollback and thermal protection
• Full range Class D IR chipset
• DirectFET power MOSFET output stage
• SMD technology on 4-layer glass PC board
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Ultra-compact and versatile
• Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 10 - 33 KHz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 25A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.89" L x 4.0" W x 1.46" H

Specifications:

MSHXM692LK24 Specifications:

• Included Rubber Gasket for HXM69F2
• Includes: HXM69F2 6”x9” Marine Grade Speaker
• 2-Way 1 inch 25mm Titanium Dome Tweeter Speaker System (Pair)
• 150W RMS / 300W MAX MAX Power Rating
• Flush Mount Design
• Water Spray and Salt Water Resistant, 100% UV Stable
• Ultra Small Neodymium Motor Structure With Max Xmax Suspension
• High Temp Injection Molded Composite Basket
• Molded, UV-Coated, Patent Pending Waterproof Injection PP Cone
• Integrated Dream RGB LED Lighting
• Mounting Diameter: 8.64" x 6.0" / 219 x 152.5mm
• Mounting Depth: 3.15" / 80m

MICRO2V2 Specifications:

• 2 Channel Full Range Digital Amplifier
• 250W x 2CH @ 2Ω
• 150W x 2CH @ 4Ω
• 500W x 1CH @4Ω Bridged RMS Power Output
• Input Sensitivity: 0.2-10 Volt
• Crossover Filter : 40-400Hz, 12dB Per Octave Slope
• Frequency Response: 10-33KHz
• Selectable REM / VOX / DC Turn On Modes
• Selectable X-Over: LPF / FLAT / HPF
• Dimensions: 7.89” x 4.1” x 1.46” / 200.5 x 103 x 37.2 mm
• Remote Bass Knob Included
• Disconnected RCA Input & Speaker Output Harness Kits Included
