Diamond Audio MS694NEOLK24 (2024+ Harley Davidson® Cut-In Lid Kit with MS69NEO Speakers) + MICRO2V2 (MICROV2 Series 2-Channel Full Range Class D Amplifier)
$1,419.98
3 items left
BRAND: Diamond Audio
SKU: MS694NEOLK24 + MICRO2V2
PRODUCT ID: 8208558031029
SHIPPING WEIGHT: 0.0 lb


100% ORIGINAL AND QUALITY

1 YEAR MANUFACTURER WARRANTY
- Description
- Reviews
Features:
MS694NEOLK24 Features:
- Unrivaled Midrange Clarity: Designed for pure midrange projection, these neodymium-driven speakers deliver cutting-edge clarity and definition, ensuring your sound stays crisp and powerful at any speed.
- Built for Performance: Featuring a lightweight yet ultra-strong neodymium motor, these speakers maximize efficiency and sound output while minimizing weight.
- Extreme Durability: Designed to withstand the elements, these speakers feature rugged, weather-resistant construction for long-lasting performance.
- Plug & Play Convenience: Includes a pre-wired harness, mounting templates, and spacer rings for an easy, seamless installation.
- Upgrade your Harley Davidson® audio system with Diamond Audio’s premium midrange sound—get the MS694NEOLK24 Cut-in Lid Kit today!
MICRO2V2 Features:
- MicroV2 Series Class D 2 ohm Stable 2-Channel Amplifier
- RMS Power Rating:
- 4 ohm: 150 watts x 2 channel
- 2 ohm: 250 watts x 2 channel
- Bridged: 500 watts x 1 channel @ 4 ohm
- Total RMS power output: 500 watts
- LED Power/Protect Light
- Wired bass level remote control included
- Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
- Advanced rollback and thermal protection
- Full range Class D IR chipset
- DirectFET power MOSFET output stage
- SMD technology on 4-layer glass PC board
- ICAD circuit provides superior overload protection
- Variable 12dB crossovers
- Ultra-compact and versatile
- Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
- Input sensitivity: 0.2 - 10 volts
- Frequency Response: 10 - 33 KHz
- Total Harmonic Distortion (THD): 0.5%
- Signal to Noise Ratio: -85 dB
- Variable high-pass filter: 40 - 400 Hz
- Variable low-pass filter: 40 - 400 Hz
- Variable Bass Boost: 0 - 12 dB
- Fuse Rating: 25A
- 8 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 7.89" L x 4.0" W x 1.46" H
Specifications:
MS694NEOLK24 Specifications:

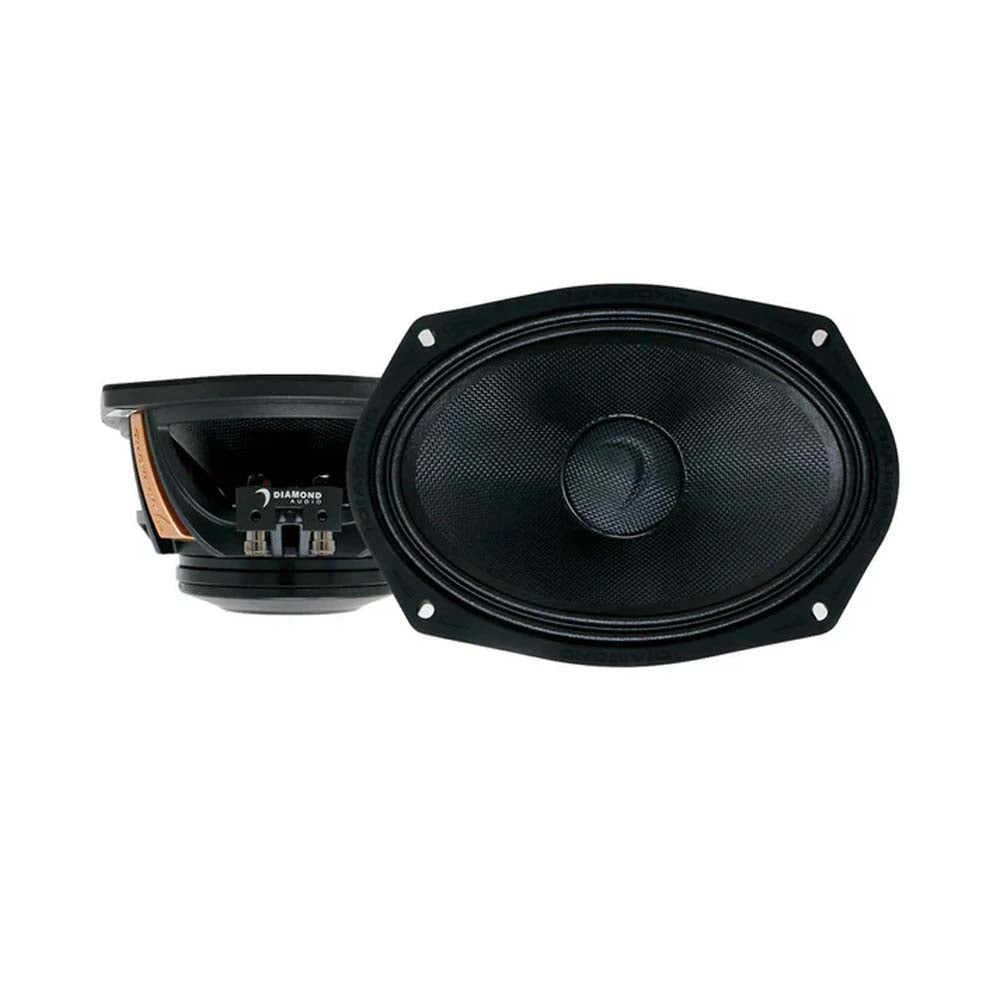

- Includes MS69NEO 6”x9” Midrange Speaker
- Includes Plug-n-Play Wire Harness
- 350W RMS, 700W MAX Power Handling
- Water Spray and Salt Water Resistant,100% UV Stable
- Ultra Small Neodymium Motor Structure With Max Xmax Suspension
- High Temp Injection Molded Composite Basket
- Molded,UV-Coated,Patent Pending Waterproof Cone
- Mounting Diameter: 6.38 x 9.33 in / 162 x 237 mm
- Mounting Depth: 2.28" / 58mm
MICRO2V2 Specifications:
- 2 Channel Full Range Digital Amplifier
- 250W x 2CH @ 2Ω
- 150W x 2CH @ 4Ω
- 500W x 1CH @4Ω Bridged RMS Power Output
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Dimensions: 7.89” x 4.1” x 1.46” / 200.5 x 103 x 37.2 mm
- Remote Bass Knob Included
- Disconnected RCA Input & Speaker Output Harness Kits Included
