Diamond Audio MSMP694LK24 (2024+ Harley Davidson® Cut-In Lid Kit with MP694 Speakers (4Ω)) + MICRO2V2 (MICROV2 Series 2-Channel Full Range Class D Amplifier)

Features:

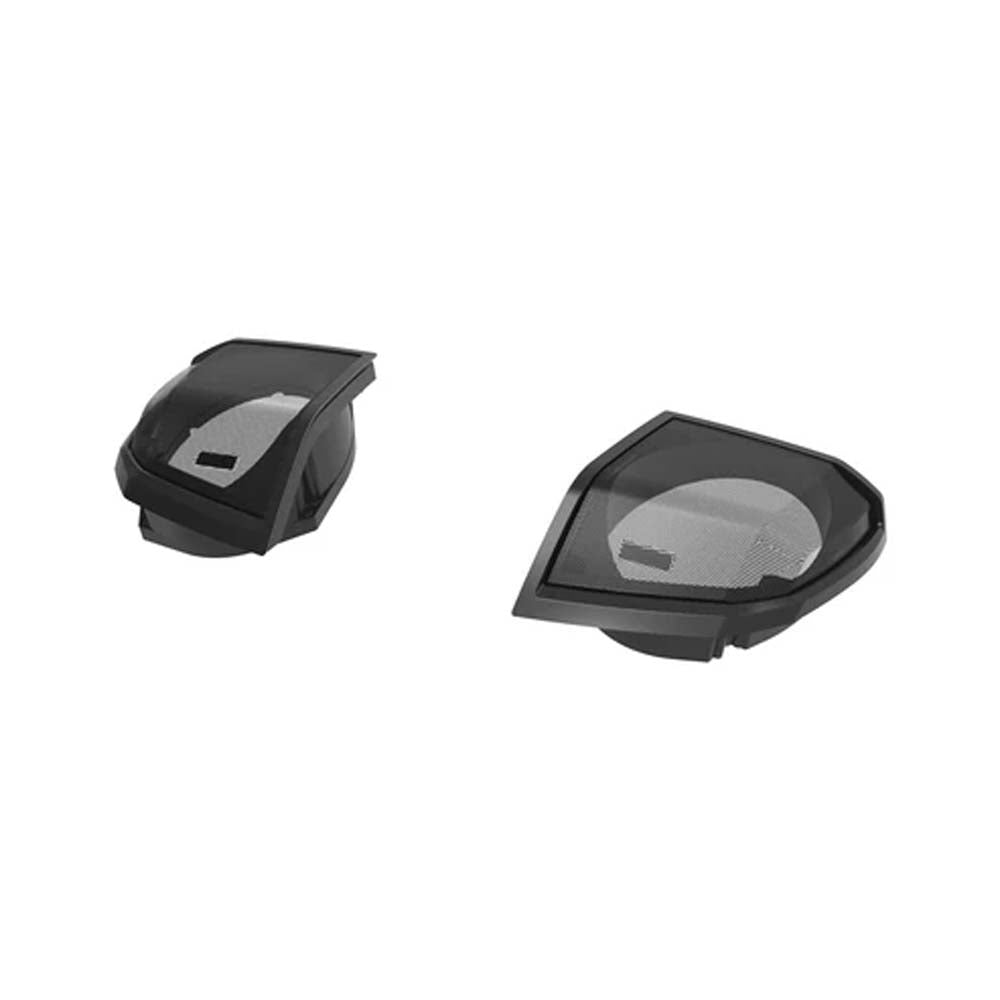

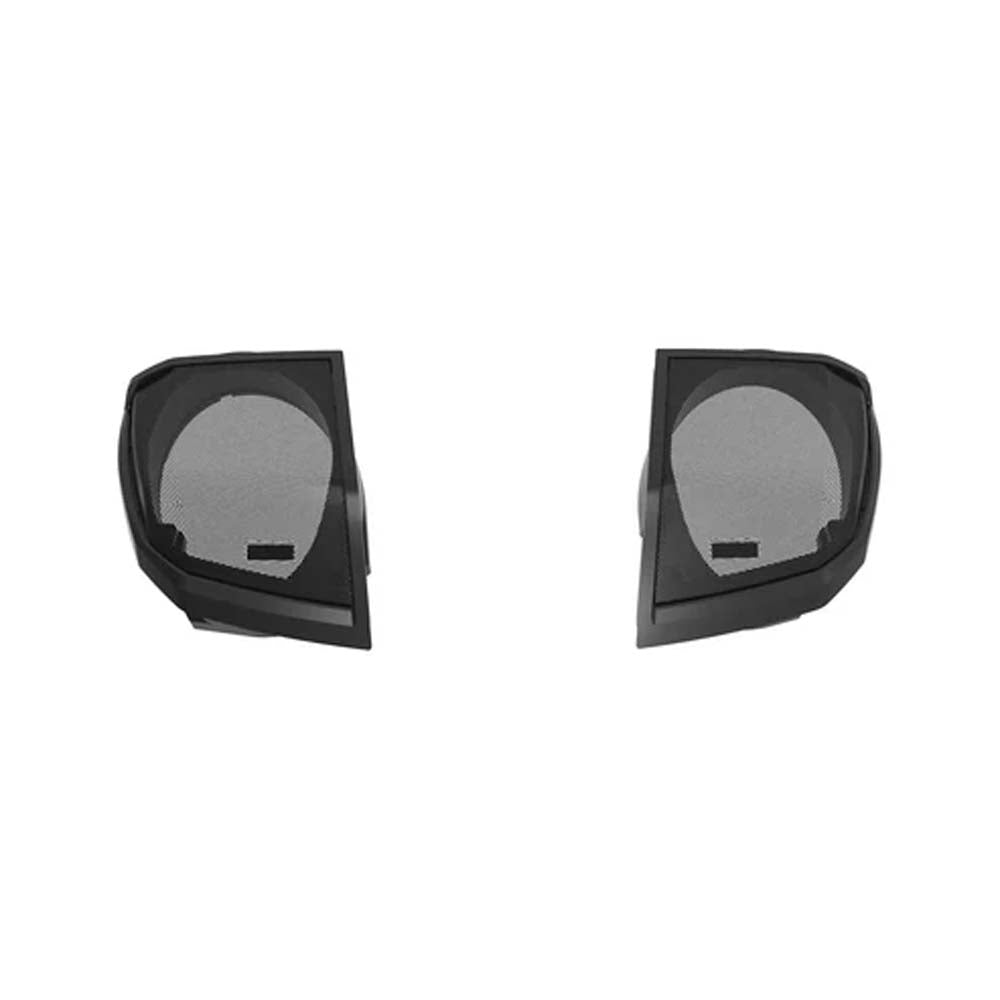

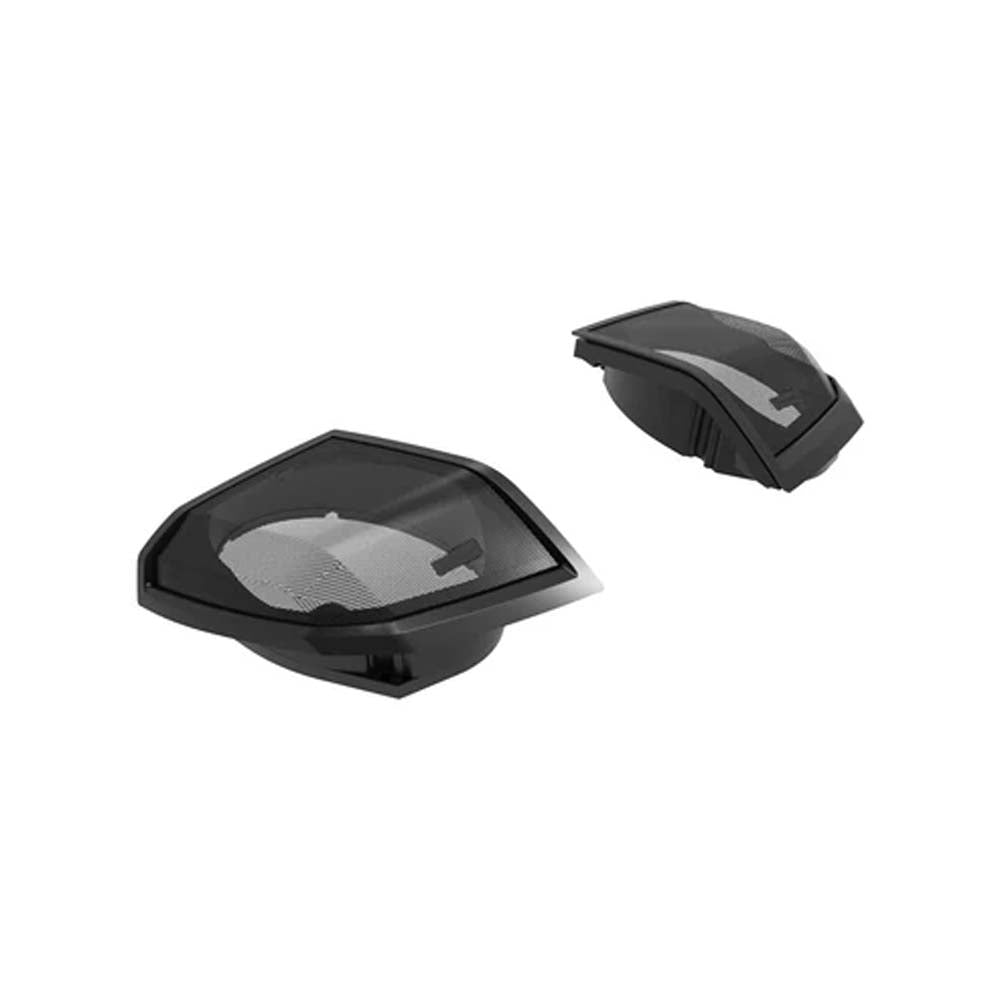

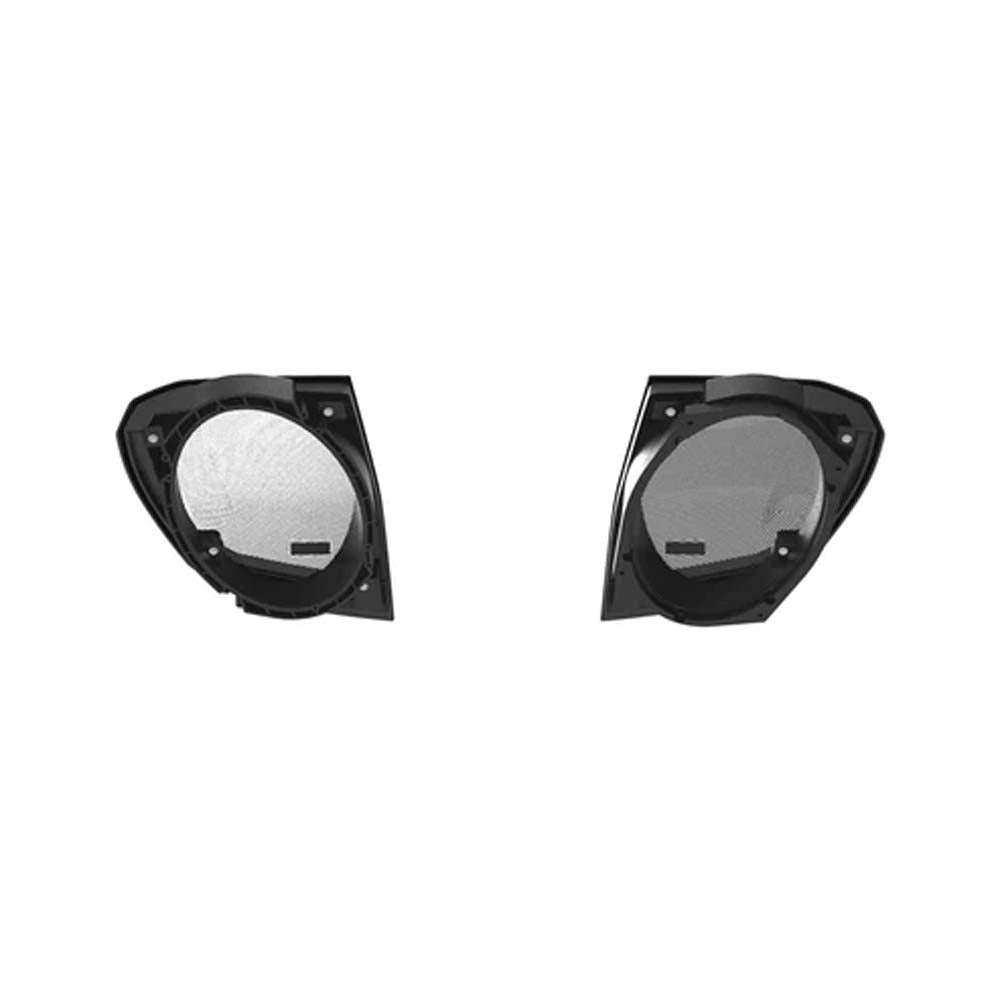

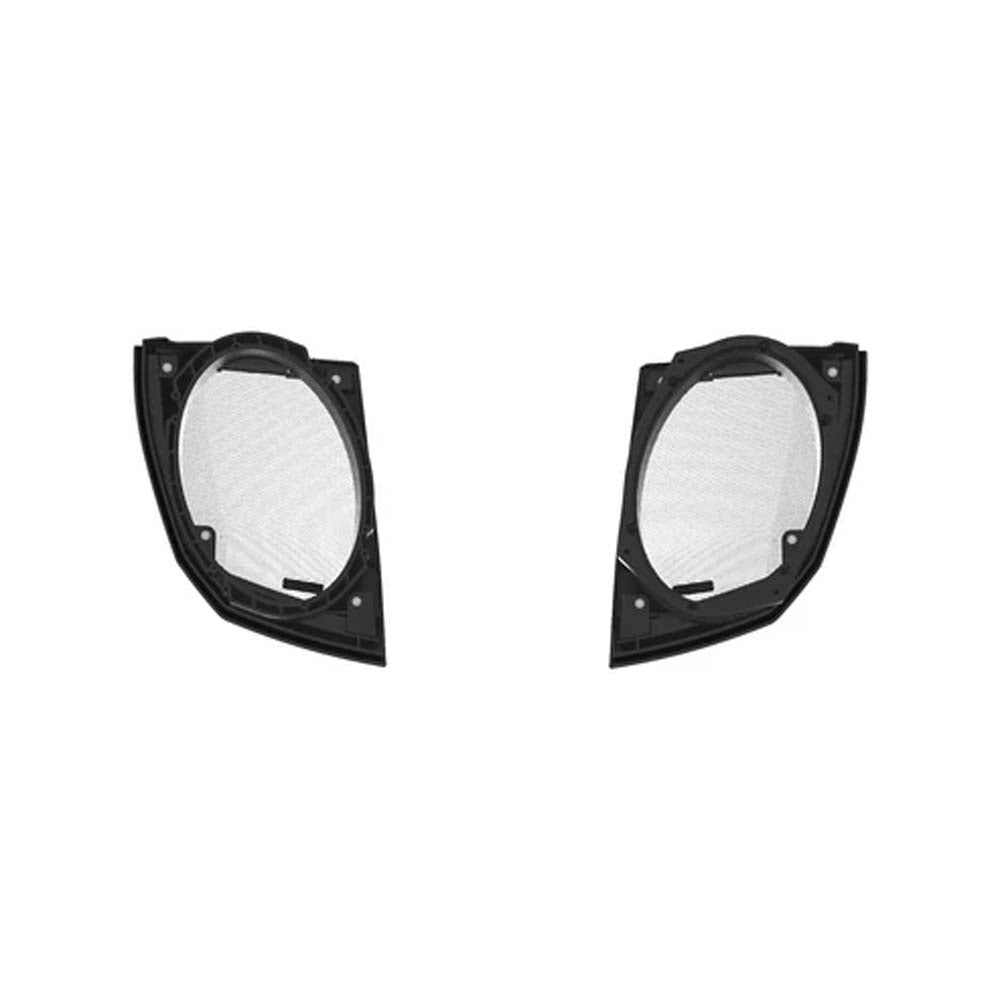

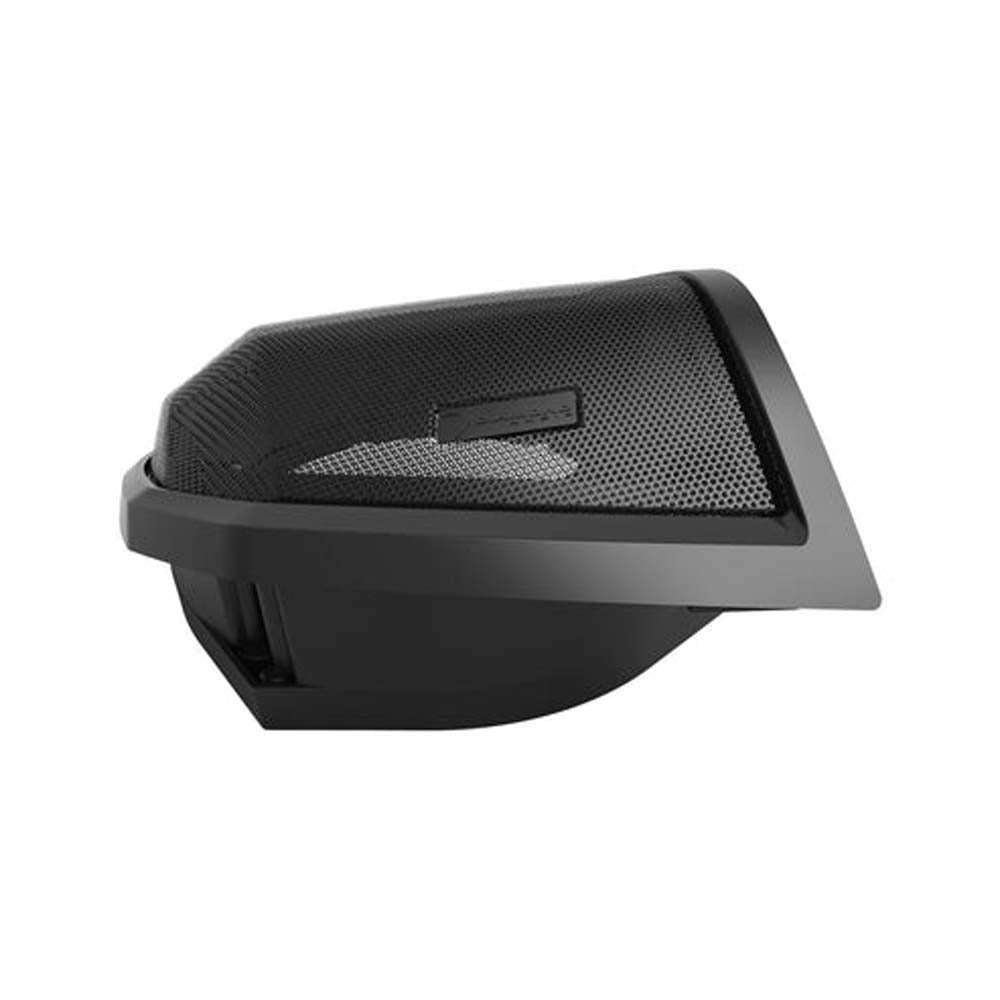

MSMP694LK24 Features:

• Extreme Sound Output: Designed for maximum loudness, these pro-grade horn-loaded speakers cut through wind, engine noise, and road sounds, ensuring exceptional audio clarity.
• Premium Construction: Engineered with a heavy-duty neodymium motor structure, high-temp voice coils, and a reinforced steel basket for rugged durability.
• Perfect Fit & Factory Finish: Designed specifically for 2024+ Harley Davidson® bagger models, ensuring a seamless integration without compromising your bike’s sleek design.
• Road-Ready Durability: Built to endure harsh conditions, these water-resistant speakers deliver consistent, high-output performance in any riding environment.
• Effortless Installation: Comes with a Plug & Play wiring harness, custom mounting templates, and precision spacer rings for a quick, easy installation process.
• If you demand loud, clear, and aggressive sound, the MSMP694LK24 Cut-in Lid Kit is the perfect audio upgrade for your ride. Order today!

MICRO2V2 Features:

• MicroV2 Series Class D 2 ohm Stable 2-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 2 channel
• 2 ohm: 250 watts x 2 channel
• Bridged: 500 watts x 1 channel @ 4 ohm
• Total RMS power output: 500 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
• Advanced rollback and thermal protection
• Full range Class D IR chipset
• DirectFET power MOSFET output stage
• SMD technology on 4-layer glass PC board
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Ultra-compact and versatile
• Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 10 - 33 KHz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 25A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.89" L x 4.0" W x 1.46" H

Specifications:

MSMP694LK24 Specifications:

• Includes .5” 6” x 9” Spacer Ring

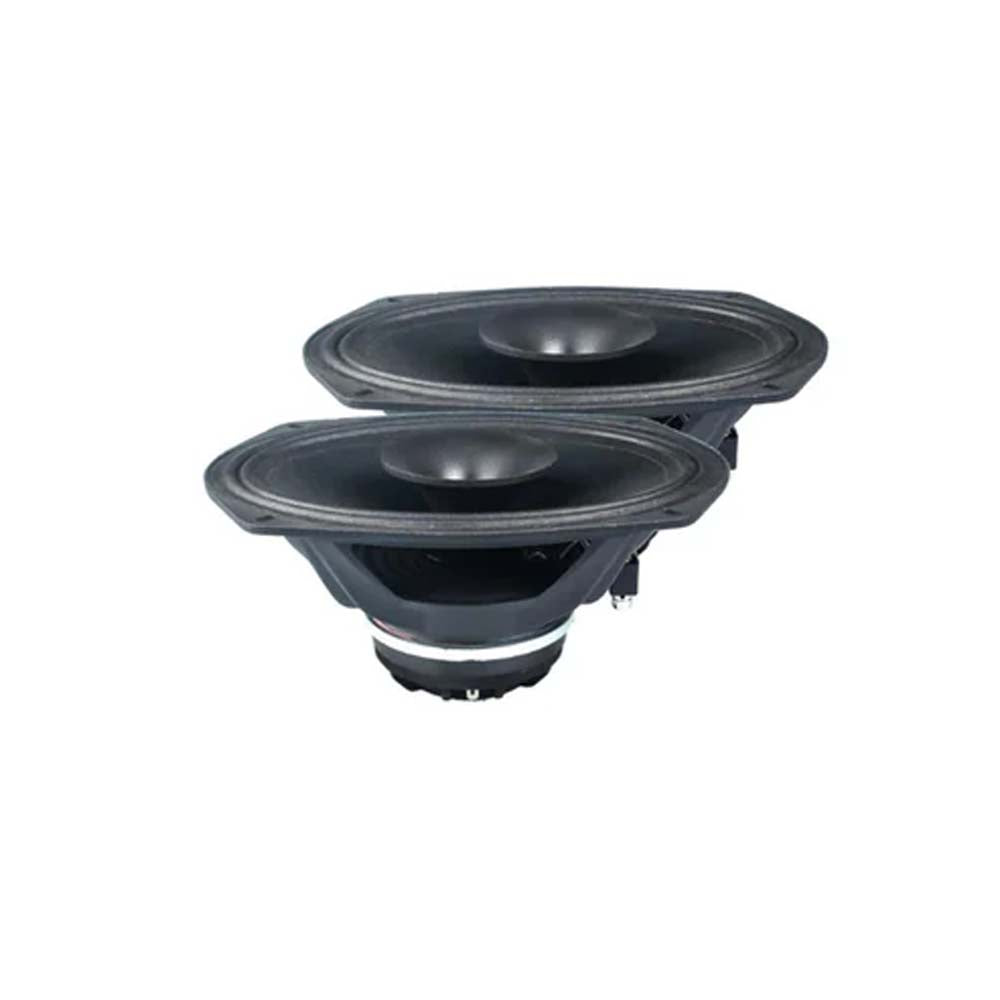

• Includes MP694
• Includes Plug-n-Play Wire Harness
• 150W RMS/300W MAX Power Handling
• Lightweight Neodymium Magnet structure
• Heavy Duty Die-cast Aluminum Basket
• 1.5" 4Ω - Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
• 1.0" 8Ω - Single Layer High Temp Voice Coil for Tweeter
• Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
• Frequency Response: 80Hz -18Khz
• High Sensitivity 101dB 1W/1M
• 12dB Crossover
• Mounting Depth: 3.99" / 101.3mm
• Mounting Diameter: 8.86" x 5.98" / 225 x 152mm

MICRO2V2 Specifications:

• 2 Channel Full Range Digital Amplifier
• 250W x 2CH @ 2Ω
• 150W x 2CH @ 4Ω
• 500W x 1CH @4Ω Bridged RMS Power Output
• Input Sensitivity: 0.2-10 Volt
• Crossover Filter : 40-400Hz, 12dB Per Octave Slope
• Frequency Response: 10-33KHz
• Selectable REM / VOX / DC Turn On Modes
• Selectable X-Over: LPF / FLAT / HPF
• Dimensions: 7.89” x 4.1” x 1.46” / 200.5 x 103 x 37.2 mm
• Remote Bass Knob Included
• Disconnected RCA Input & Speaker Output Harness Kits Included
