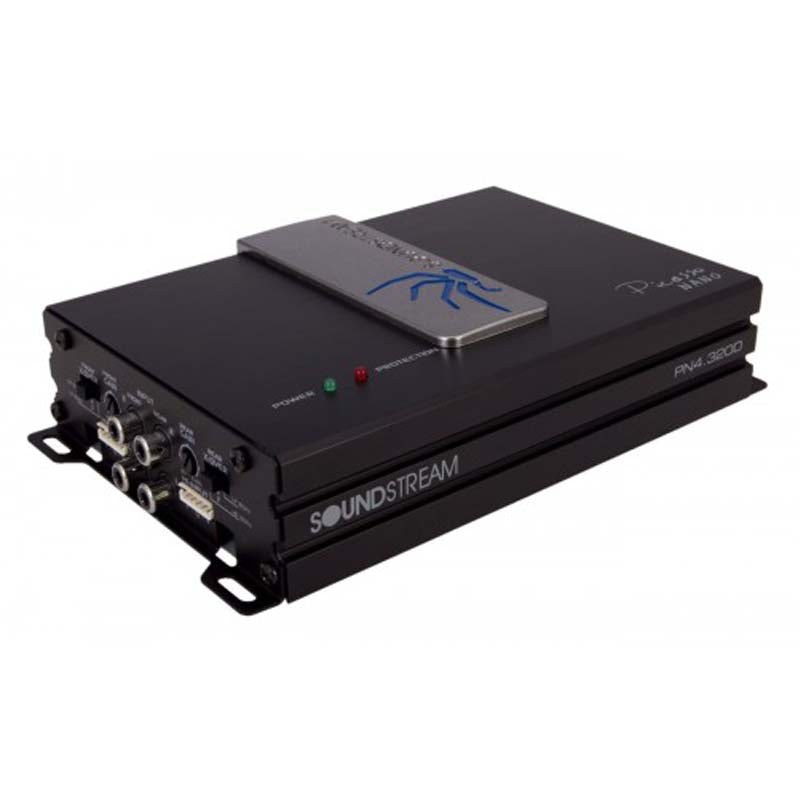

Soundstream PN4.320D

Features:

• Picasso Nano Series 4-Channel Class D Car Amplifier
• RMS Power Rating:
• 4 ohms: 60 watts x 4 chan.
• 2 ohms: 80 watts x 4 chan.
• 4 ohms, Bridged: 160 x 2 chan.
• Max power output: 320 watts
• Pulse Width Modulated MOSFET power supply
• Heavy duty aluminum heatsink
• Soft turn-on circuit
• Thermal and speaker short protection circuitry
• Dash mount remote bass level control included
• Variable Bass Boost (0 to +12 dB bass boost at 80 Hz)
• 4 and 2 channel operation
• 180° phase switch
• Speaker-level (high-level) inputs
• Variable low-pass filter (50-250 Hz, 24 dB/octave)
• Subsonic filter (12 dB at 10-50 Hz)
• 4 gauge power and ground wiring is required for installation
