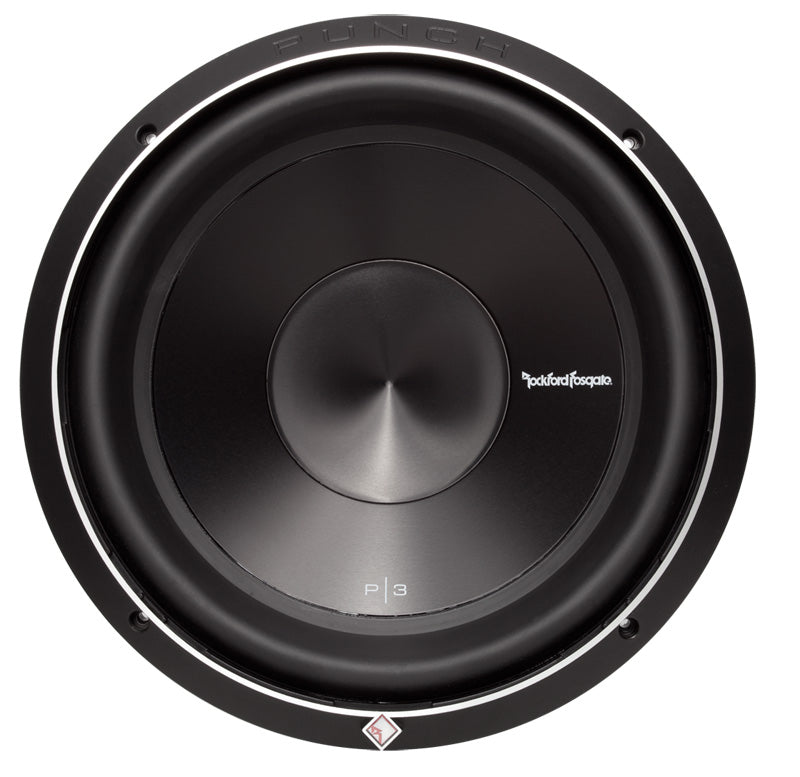

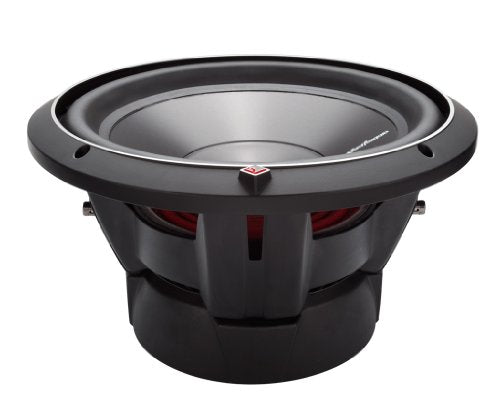

Rockford Fosgate P3D4-12

The P3D4-12 Punch Series 12 Inch Subwoofer has a peak power rating of 1200 watts and a RMS rating of 600 watts. This sub will produce some earth shaking bass and is constructed with an anodized aluminum cone and a vertical attach surround technique. This woofer is also equipped with a 2-1/2 Inch Voice coil and a protective PVC textured magnet cover. Add some bumps in your trunk and enhance your cars stereo system with this Rockford Fosgate Punch Series Subwoofer.

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

In order to increase the surface area of the cone without causing any installation issues, Rockford Fosgate designed the Vertical Attach Surround Technique (VAST). By redesigning the manner in which the surround adheres to the basket, these speakers gain up to 25% more effective radiating cone area. This improves the nominal efficiency and maximum output.

Features:

• 12 Inch Punch P3 Series Dual 4 Ohm Subwoofer
• Power Handling:
  • Peak: 1200 watts
  • RMS: 600 watts
• Impedance: 4 ohm
• Dual tear & fatigue resistant linear poly cotton spiders
• Optimized motor magnetics with extended pole and bumped backplate
• Fatigue resistant and reduced strain stitched tinsel leads
• Multi point high temp/strength neck joint bonding technique
• Sturdy 16 gauge compound bend frame geometry
• Semi-Flexible PVC removable protective motor cover
• Custom insulated compression input terminal assembly
• Proprietary spider venting/cooling technique
• Decorative die cast trim ring
• Custom 10-AWG nickel plated push terminals
• 102 oz Double stacked ferrite magnet structure
• Frequency response: 27.7-250 Hz
• Sensitivity: 85 dB
• Xmax: 16.2 mm
• Mounting Depth: 6-11/16 Inch
• Cutout Diameter: 11-1/4 Inch
• Anodized aluminum heat sinking cone & dustcap for strength and durability
• High temperature 4-layer 2-1/2 Inch voice coil with spun laced nomex insulating reinforcement collar
• Tall profile true Santoprene vertical attach surround technique increases a speaker's effective radiating cone area

Specifications:

• Subwoofer Series: Punch P3
• Subwoofer Size: 12 Inch
• Peak Power Handling: 1200 watts
• RMS Power Handling: 600 watts
• Voice Coils: Dual
• Impedance Per Voice Coil: 4 ohms
• Voice Coil Diameter: 2.5 Inch
• Frequency Response: 27.7 - 250 Hz
• Sensitivity: 85 dB
• Xmax: 16.2 millimeters
• Subwoofer Design: Round / Circle
• Main Cone Color: Black
• Woofer Composition: Anodized Aluminum
• Woofer Surround: Santoprene Rubber
• Magnet Structure: Double Stacked
• Subwoofer Grille: Optional
• Re-Cone Kit Available: No
