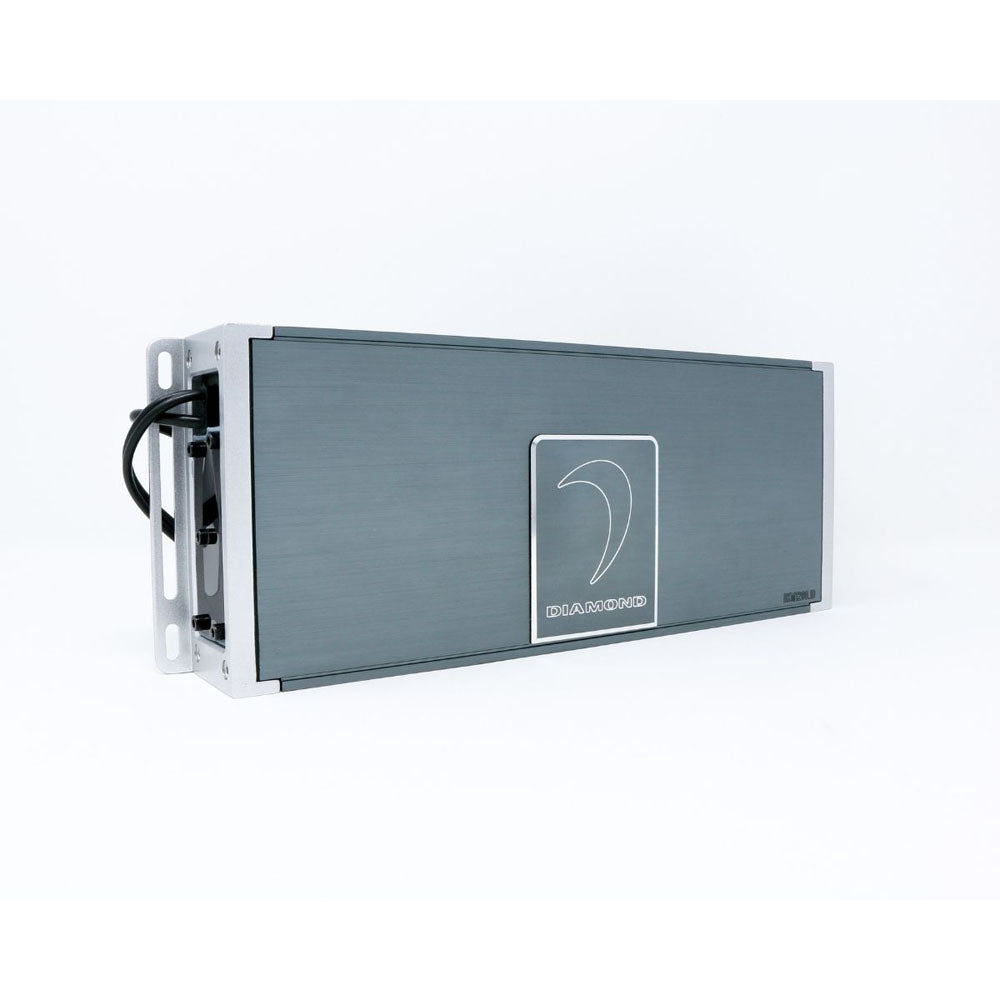

Diamond Audio DXM1200.1D MOTORSPORT Diamond Series 800W X 1 @2Ohms, Class D Full Range Mono Compact Waterproof Amplifier

Specifications:

• Power Output at 1Ω: 1200W
• Power Output at 2Ω: 800W
• Power Output at 4Ω: 500W
• Power Output at 4Ω Bridged: –
• Total Harmonic Distortion: <0.3%
• S/N Ratio Red 1W at 4Ω: >-102dB
• Gain Range: 0.2-10V
• Crossover Range: 40-250Hz
• Frequency Range: 40-300Hz
• Subsonic: 10-55Hz
• Bass Boost: 0-18dB
• Bass Remote Control: Yes
• Current Draw (Full Power & Music): 140A/14A (avg)
• Recommended Fuse Rating: **70A
• Dimentions- Length x Width x Height (inches): 11.8″ x 4.3″ x 1.7″
• Dimentions- Length x Width x Height (mm): 298.6 x 110 x 44 mm
