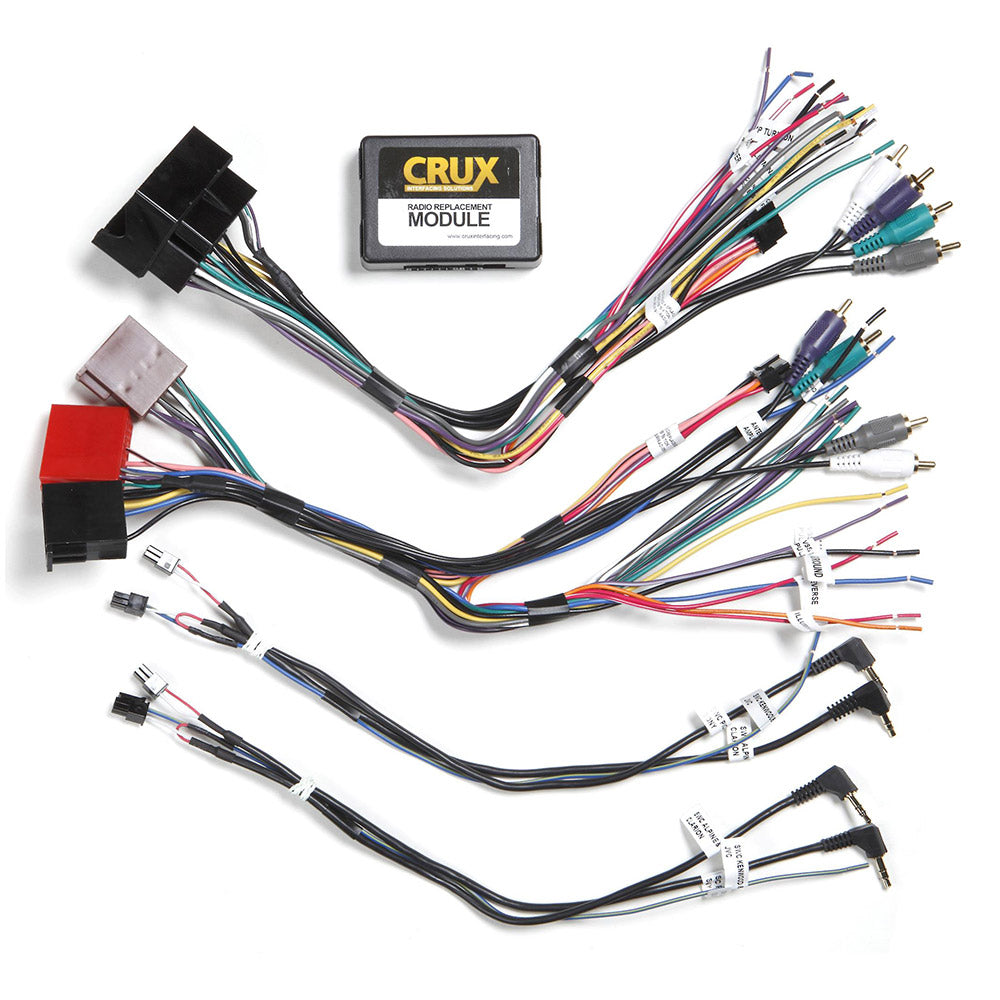

Crux SWRAD-55 Wiring Interface

Features:

General Features:

• Aftermarket Car Stereo Installation Interface
• For select 2001-2010 Audi Vehicles
• Retains factory features with aftermarket radios
• Retains factory-installed amplified systems
• Retains Steering Wheel Controls via built-in, pre-programmed interface
• With navigation outputs (Reverse gear , Illumination and Speed signal)
• Provides Accessory Power (2A MAX)

Compatible Vehicles:

• Audi
  • 2002 - 2010 A3
  • 2001 - 2009 A4
  • 2008 - 2010 A5
  • 2002 - 2004 A6
  • 2004 - 2009 S4
  • 2009 - 2010 Q5
  • 2002 - 2010 TT

Specifications:

Harness Features:

• Vehicle Sound System: Standard Sound
• Main Harness Function: Install a Car Stereo & Retain the Factory OEM Amplifier
• Additional Harness Features: Chime Retention, Retained Accessory Power (RAP) Retention, Retains Steering Wheel Controls
• Compatible Vehicle Make: Audi
• Compatible Vehicle Make and Model: Audi A3, Audi A4, Audi A5, Audi A6, Audi S4, Audi TT

Premium Harness Features:

• Factory System Amplification: Amplified, Non-Amplified
• Compatible with Aftermarket Navigation Systems: Yes
• Chime Retention: Yes
