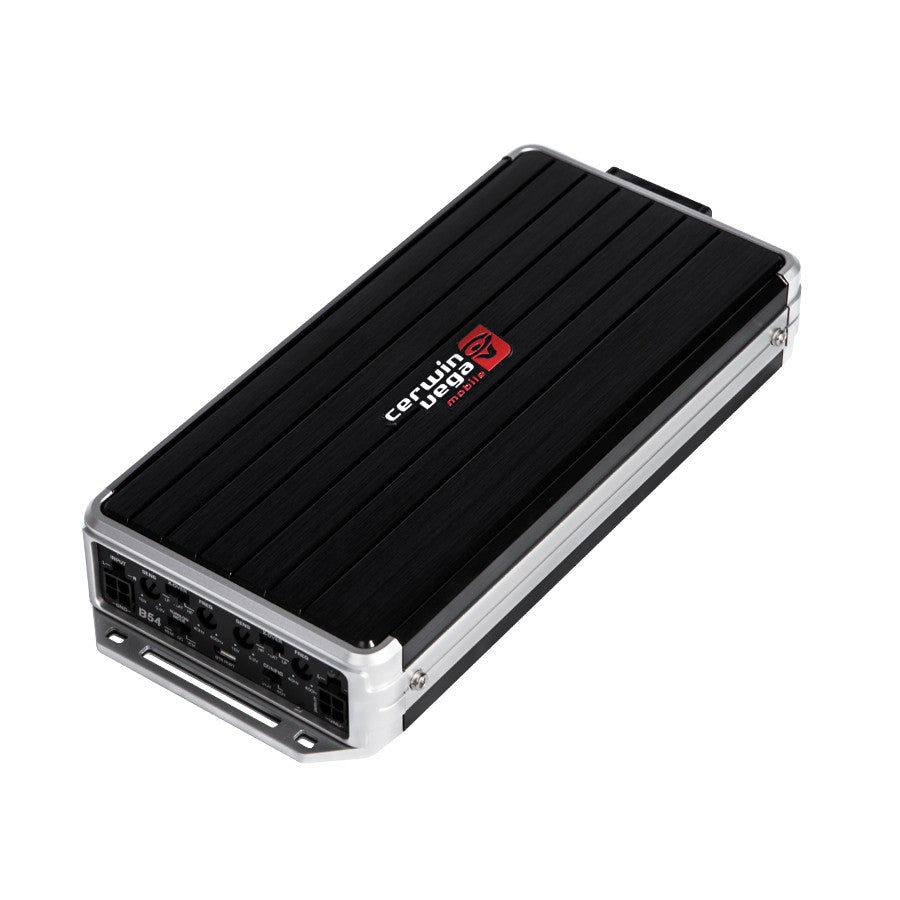

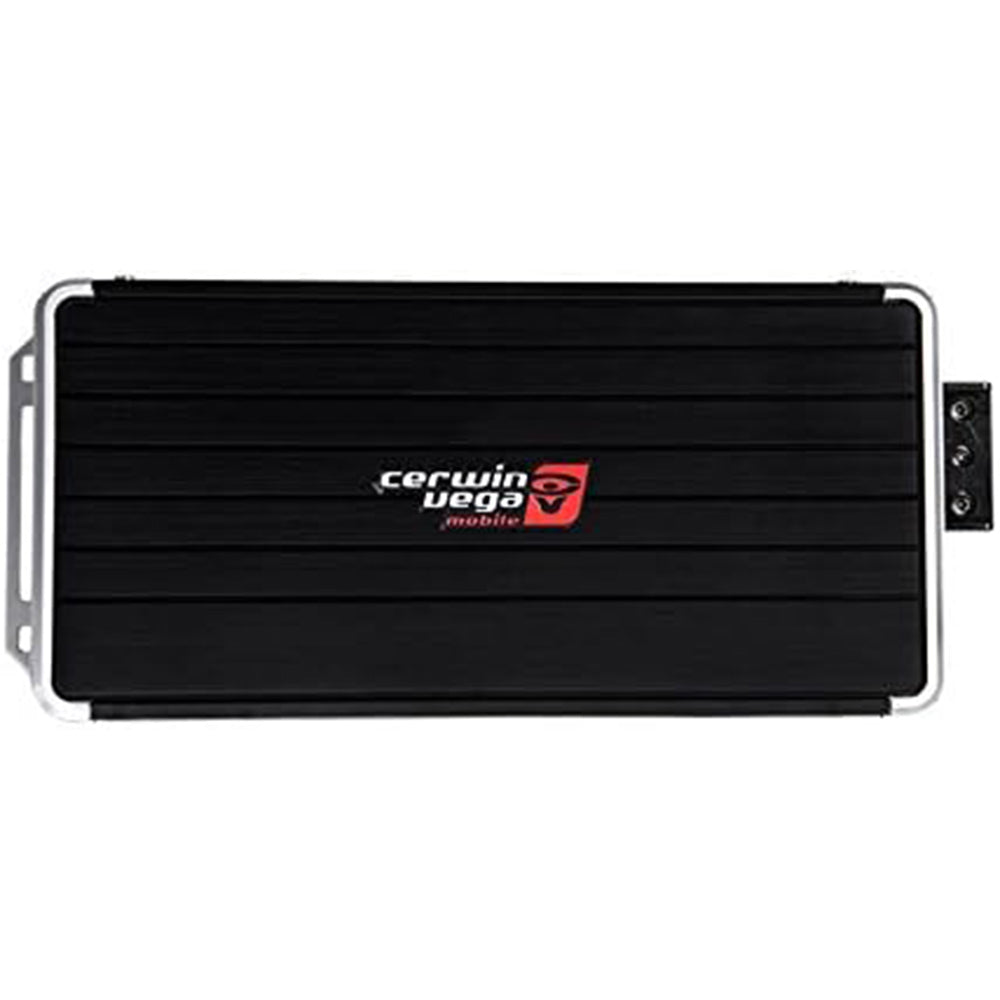

Cerwin Vega B-54 Bomber Series Class D Car Amplifier

Features:

• 4 Channels Bomber Series Class D Amplifier
• RMS Power Rating:
  • 4 ohms: 80 watts x 4 chans.
  • 2 ohms: 150 watts x 4 chans.
  • Bridged, 4 ohms: 300 watts x 2 chans.
• Peak power output: 1200 watts
• Class D IR Chipset with DirectFET Power Mosfet Output
• LED power and protect indicators
• 2 or 4 channel operation
• Speaker-level (high-level) inputs
• Ultra Compact High Density Aluminum Alloy Chassis
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Selectable turn-On modes: REM / DC / VOX
• Input sensitivity: 200 mV - 10 V
• Frequency Response: 10 - 33,000 Hz
• Total Harmonic Distortion (THD): 0.25%
• Signal to Noise Ration: 101.1 dB

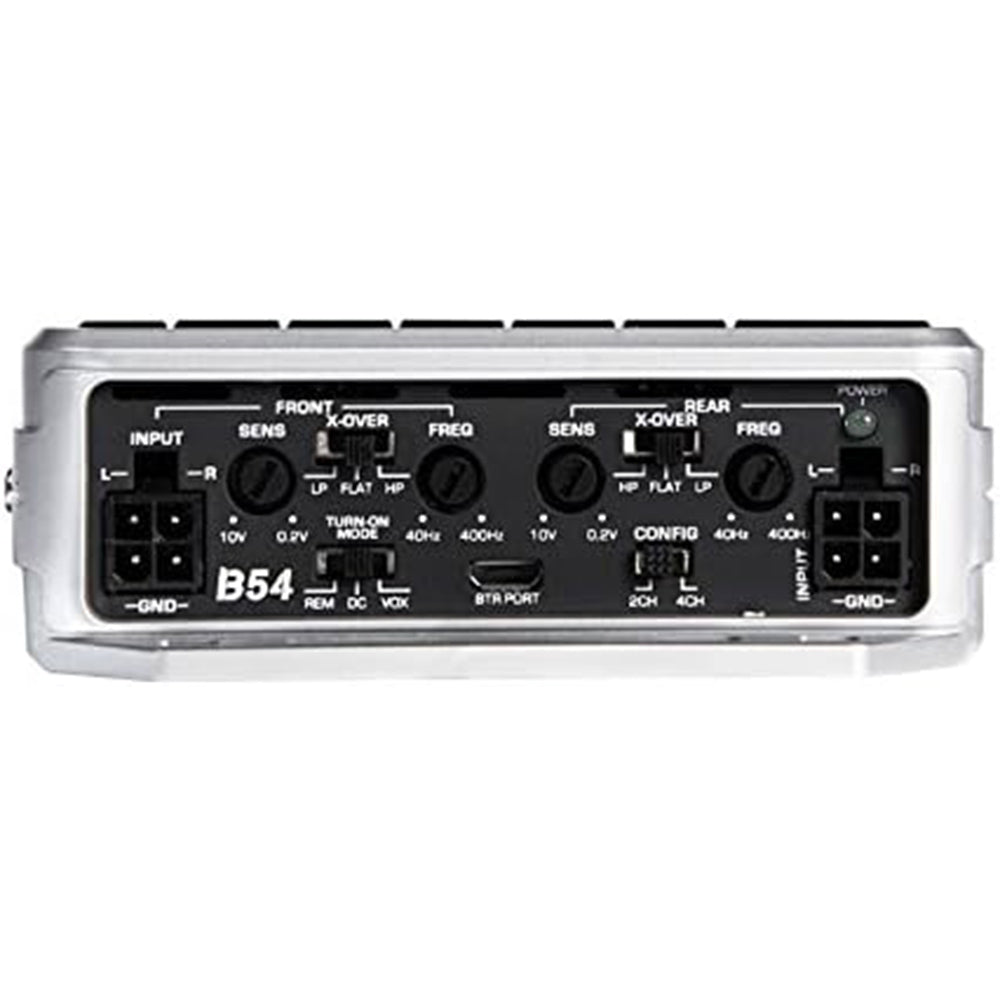

• Selectable crossover mode: HP / Flat / LP
• Variable low/high-pass filter: 40 - 400 Hz
• Dimensions: 4.02 Inch W x 8.70 Inch L x 1.40 Inch H

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 80 watts x 4 channels
• RMS Power @ 2 ohms: 150 watts x 4 channels
• Bridged RMS Power: 300 watts x 2 channels

Amplifier Specifications:

• Amplifier Series: Bomber (Cerwin Vega)
• Amplifier Class: D
• Number of Channels: 4
• Total Peak Power Output: 1200 watts
• Total RMS Power Output: 600 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• THD at Rated RMS Power: 0.25%
• Speaker Level Inputs: Yes
• Preamp Outputs: No
• Built-in Crossover: Low-pass (LP), High-pass (HP), Full (AP)
• Low-Pass Crossover Frequency: 40 - 400 Hz
• Signal-to-Noise Ratio: 101.1 dB
• Bass/Gain Remote: Yes
• Strappable: No
• CEA-2006 Compliant: No
