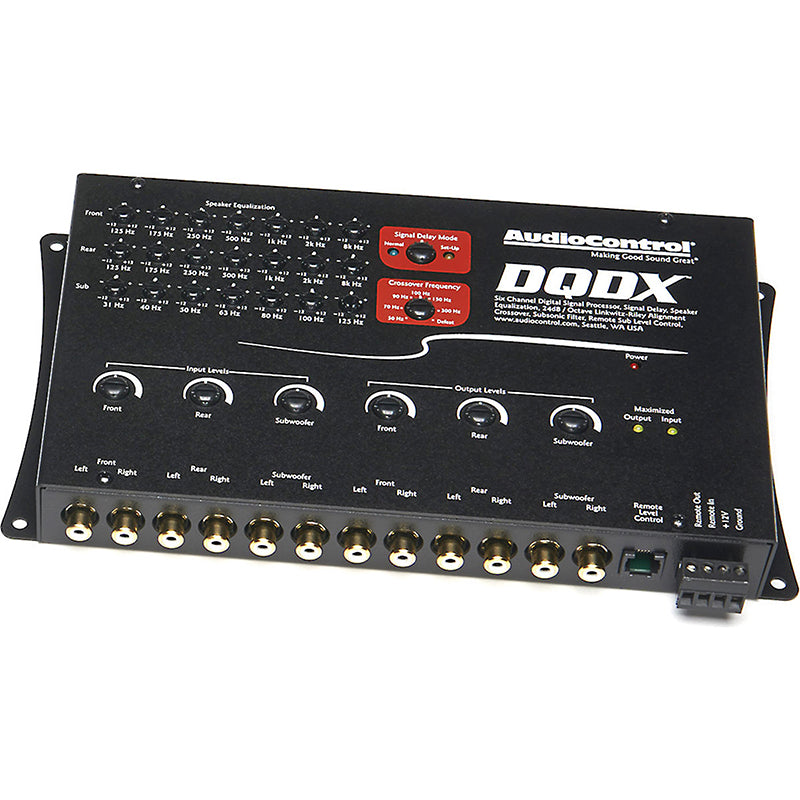

AudioControl DQDX (Black) 6 Channel Performance Digital Signal Processor with EQ, Crossover and Signal Delay plus

Features:

• Six input and output channels with level controls
• Independent Front, Rear, and Subwoofer equalization
• Fully adjustable 24dB / Octave Linkwitz-Riley selectable crossover
• High voltage Line Driver
• Signal Delay to put the speakers in acoustical alignment
• PFM (Program Frequency Match) Subsonic Filter
• ACR-3 Dash Control Remote Included
• Discrete Input and Output level controls with clipping indicators
• 12-volt Remote Turn On Output
• Built in Pink Noise for easy Signal Delay and Equalizer tuning and system set-up

Specifications:

• Total Harmonic Distortion: 0.01%
• Frequency Response: 10Hz-22kHz
• Equalizer Frequencies (front/rear): 125Hz, 175Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
• Equalizer Frequencies (sub): 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100HZ, 125Hz
• PFM Frequency: 20Hz or 30Hz selectable
• Crossover Frequency: 50Hz-500Hz selectable
• Crossover Type: 24dB/Octave Linkwitz-Riley
• Signal Delay Max (Left/Right): 10ms
• Signal Delay Max (Front/Sub): 35ms
• Preamp Inputs: 3 (6 channels)
• Input Impedance: 20kΩ
• Preamp Outputs: 3 (6 channels)
• Maximum Output Level: 7.5Vrms
• Output Gain: ±12dB
• Output Impedance: 150Ω
• Power Supply: High Headroom PWM Switching
• Current Draw: 350mA
• Recommended Fuse Rating: 2A
• Dimensions: 5.75 Inch W x 9.25 Inch D x 1.25 Inch H
