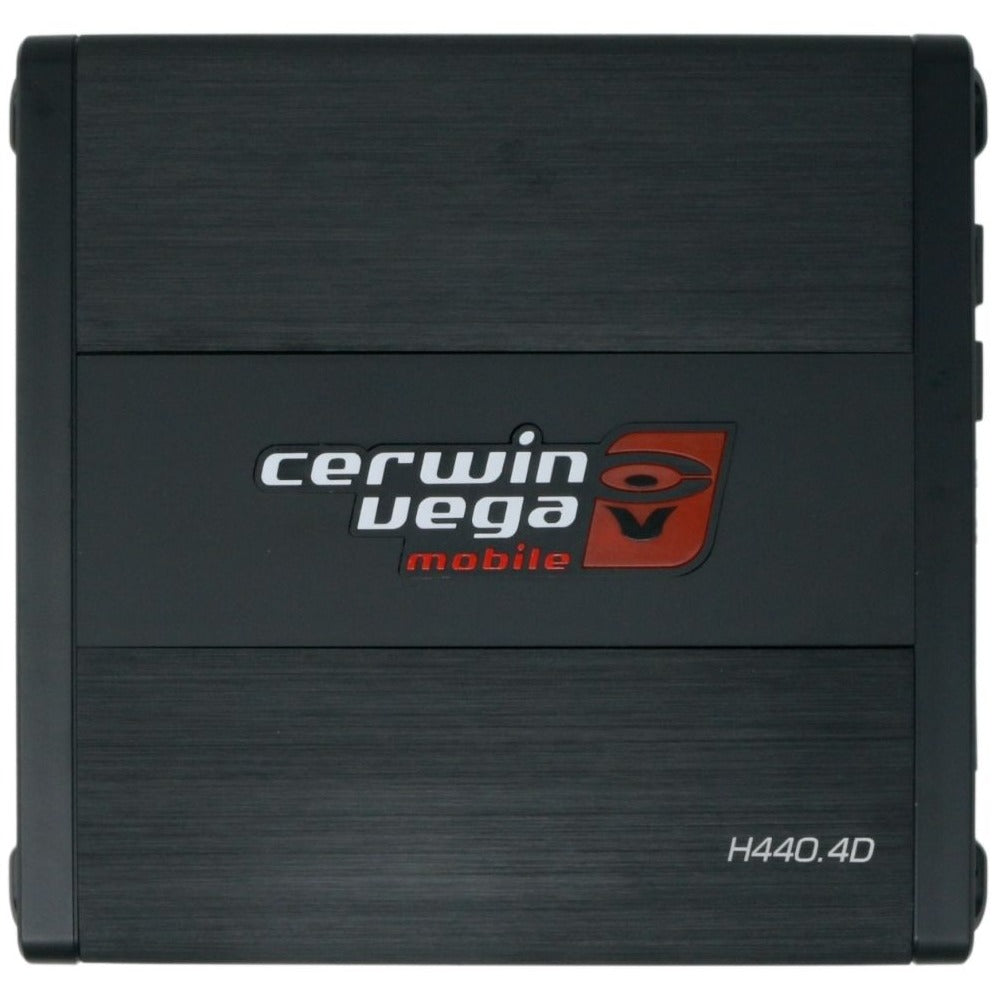

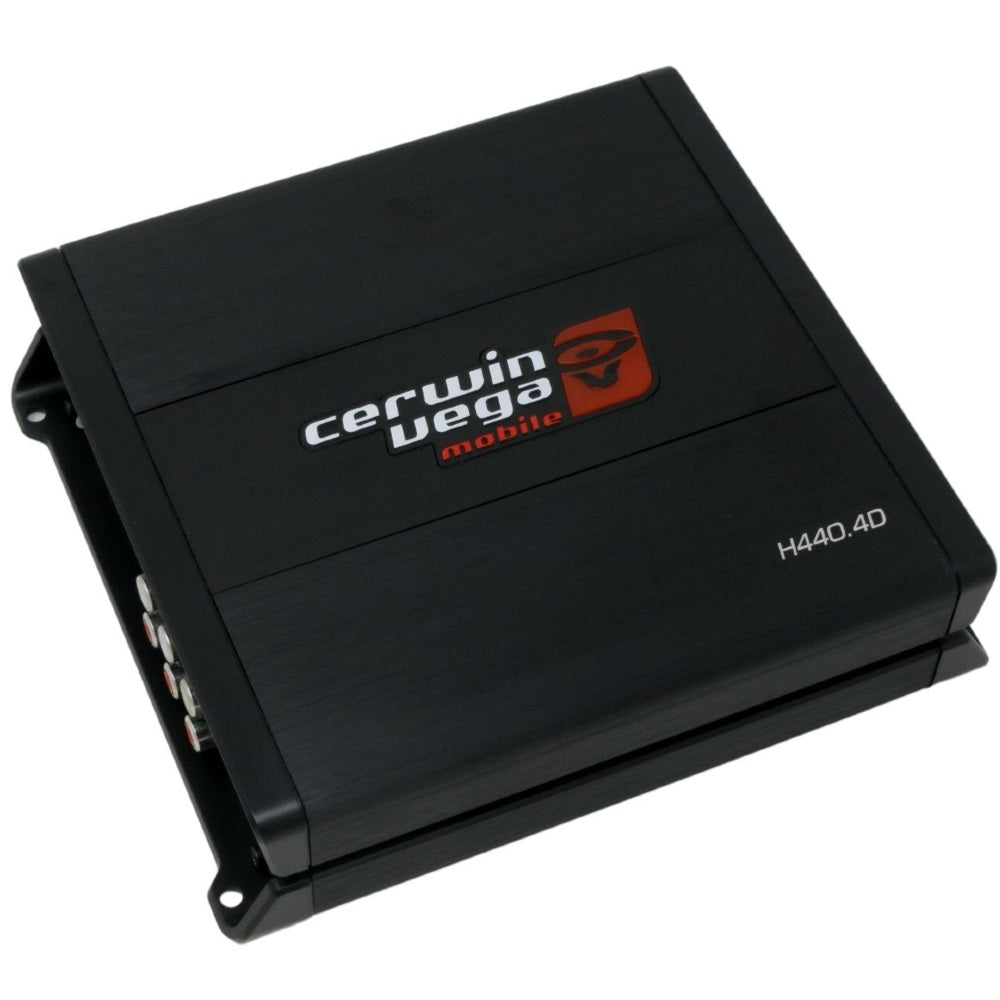

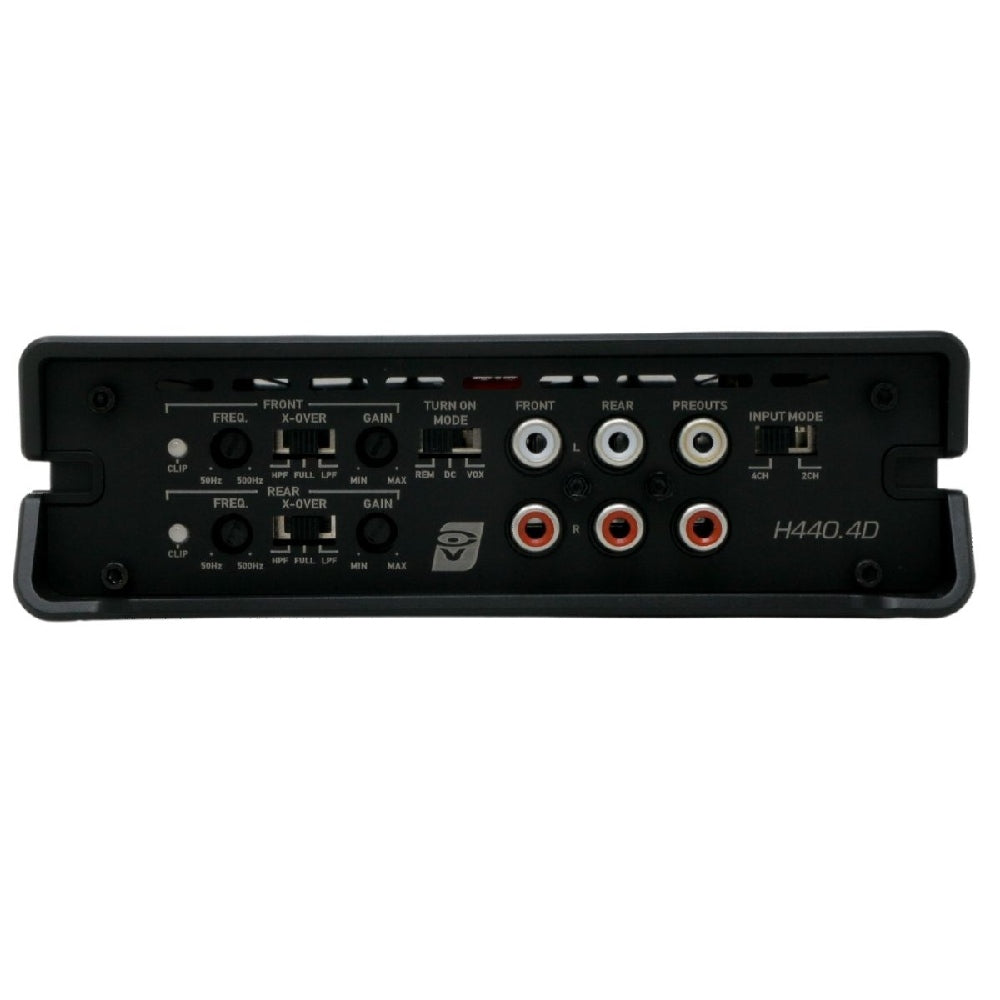

Cerwin Vega H440-4D 440W Total RMS 4 Channel Full Range Class D Amplifier

Features:

• Class D 2 ohms Stable 4 Channel Amplifier
• RMS Power Rating:
• 4 ohms: 75 watts x 4 channels
• 2 ohms: 110 watts x 4 channels
• Bridged, 4 ohms: 220 watts x 2 channels
• Total power output: 440 watts
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Speaker-level (high-level) inputs
• 3 way protection circuitry (thermal, overload, and speaker short protection)
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: 90 dB
• Variable high-pass filter: 50 - 500 Hz, 24 dB/octave
• Variable low-pass filter: 50 - 500 Hz, 24 dB/octave
• Variable Bass Boost: bass boost at 50 Hz
• 4 AWG gauge power and ground wiring is recommended for installation.
