Power Acoustik OD5-3500 3500W 5-Channel Class A/B Amplifier with Bass Remote

Features:

• High-Efficiency Class D Full Range Amplifier
• Hybrid Aluminum Alloy Heatsink For Optimum Dissipation
• Mosfet Power Supply W/ Audiophile Grade IRTM Transistors
• Military Grade SMT PCB Maintains Dynamic Performance
• Direct Short, Thermal, & Overload Circuits Protect Amplifier

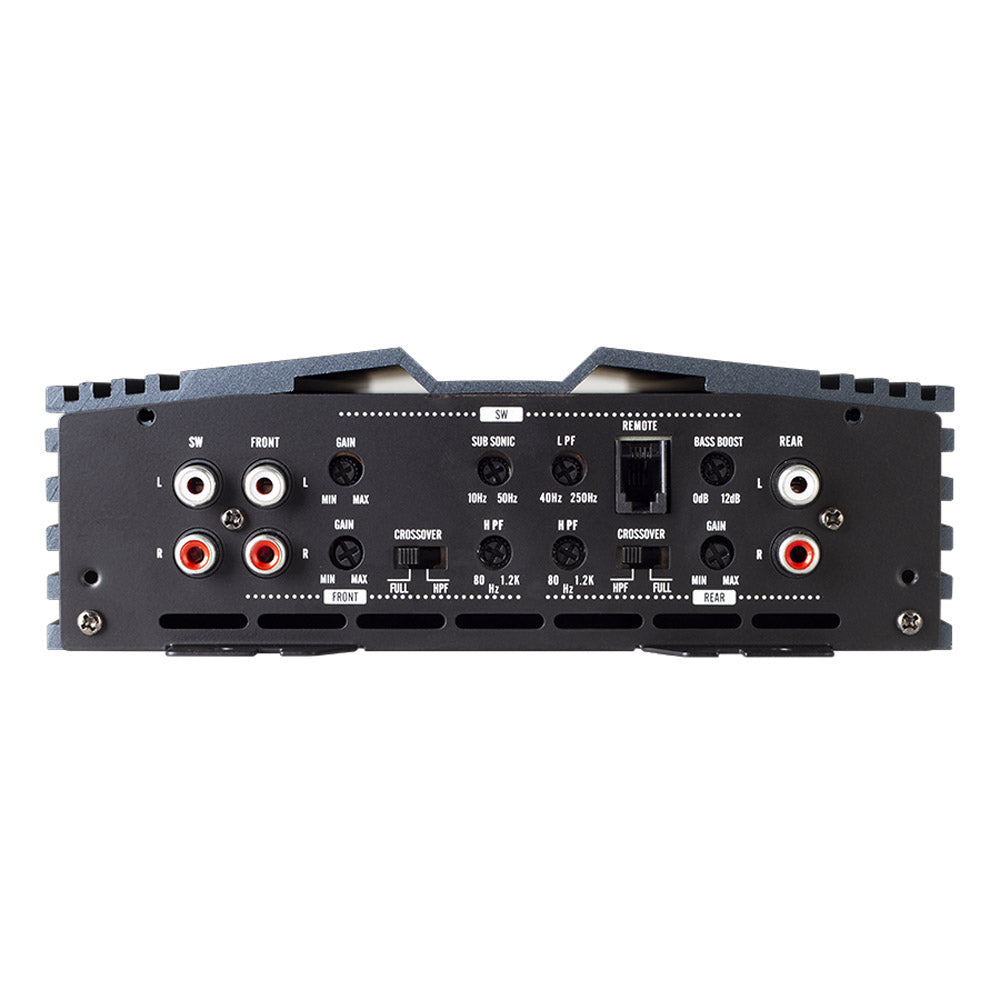

• 200Mv-6V Low-Level RCA Signal Input + Thru-Pass Output

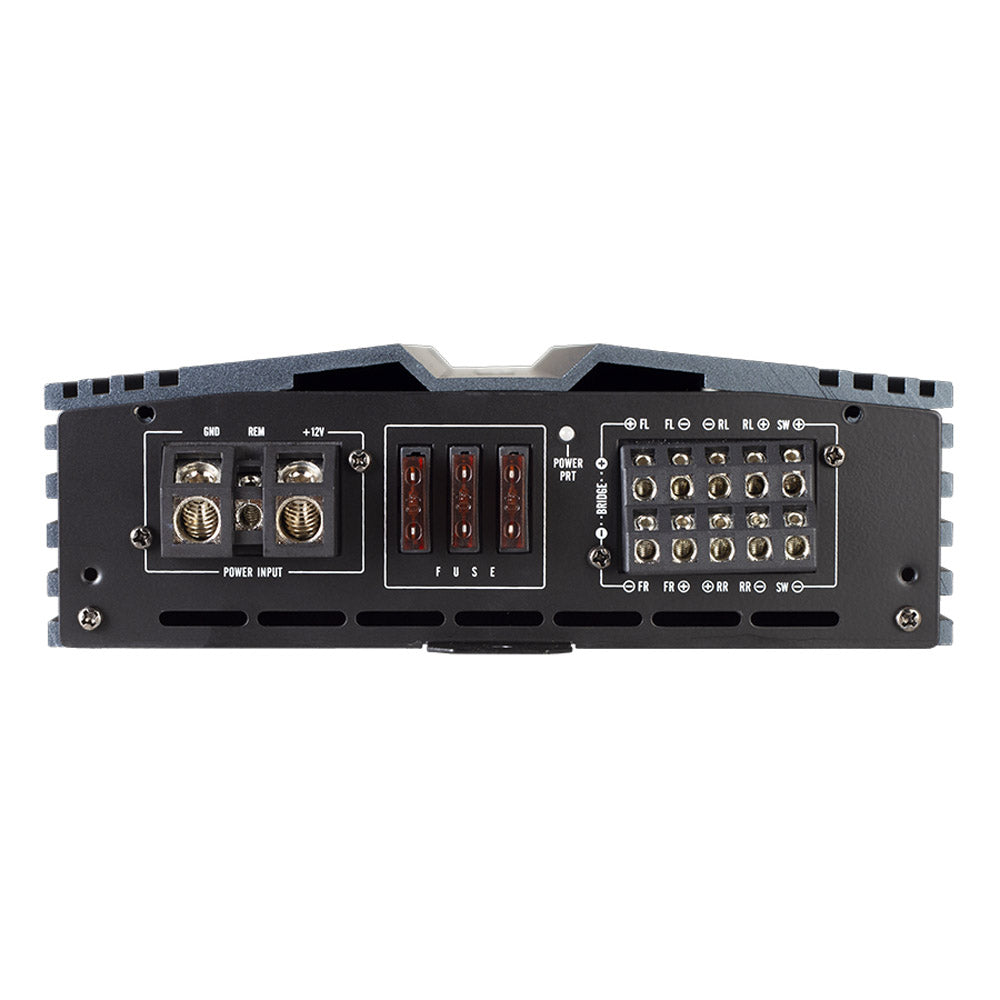

• 4G Power Input Terminals & 12G Speaker Output Terminals
• Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
• 12dB Bass Boost Increases Low Octave Harmonics
• 16.25"L x 7.25"W x 2.5"H

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 140 watts x 4 channel
• RMS Power @ 2 ohms: 200 watts x 4 channel
• Bridged RMS Power: 440 watts x 2 channel

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 300 watts x 1 channel
• RMS Power @ 2 ohms: 500 watts x 1 channel

Amplifier Specifications:

• Marine Certified: No
• Amplifier Class: A/B
• Number of Channels: 5
• Total Peak Power Output: 3500 watts
• Total RMS Power Output: 1380 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• THD at Rated RMS Power: >1%
• Speaker Level Inputs: No
• Preamp Outputs: 1 pair
• Built-in Crossover: Low-Pass (LP), High-Pass (HP), Subsonic
• Remote bass/level controller: No
• Fan Cooled: No
• Strappable: No
• CEA-2031 Compliant: No
• Amp Bluetooth Connectivity: No
• Hi-Res Certified: No
